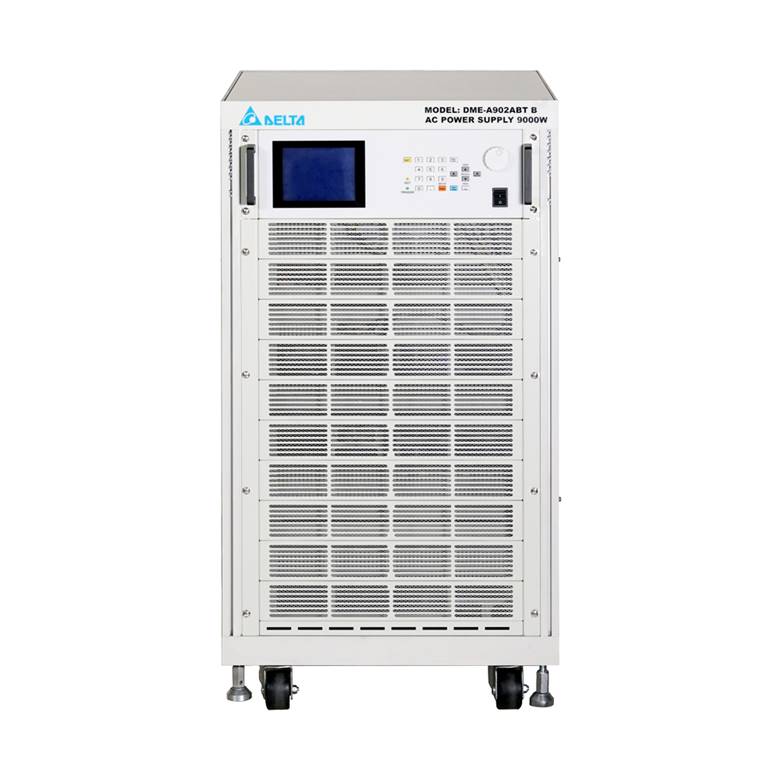

A9000
Programmable AC Power Source
9KVA
Description
Accurate, Fast
Response and Easy to Measure
The A9000 programmable AC power
source is equipped with advanced DSP technology for accurate electronic
parameters such as Vrms, Irms,
active power, VA, PF, and more. It also has 30 sets of mainstream waveform
synchronization built in. Maximum 9000VA output power and programmable 30–1KHz output
frequency. Supports remote control via RS232 or GPIB
communication. From design and quality testing to manufacturing testing, the
A9000 can fulfill your needs.

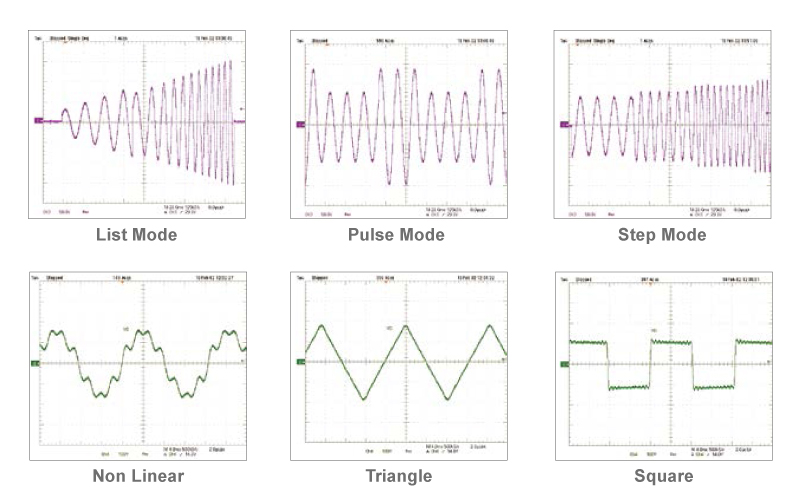

Complete Waveform Simulation
Delta A9000's AC power supply has 30
sets of mainstream waveforms and two sets of customized waveforms to fulfill
the needs of various applications such as specific on-board charging,
communication equipment, switching power, and more. Supports programmable
LIST, PULSE, and STEP via advanced DSP technology for easy simulation of power
disturbance testing.
Features
- Programmable control voltage and current limits
- High-peak output current for accurate inrush current
testing
- Advanced DSP technology provides accurate electronic
parameters
- 30 sets of mainstream waveform synchronization built
in for simulating various power grids
- Single-phase parallel or three-phase configurations
for different environments
- Comprehensive circuit and fan protection

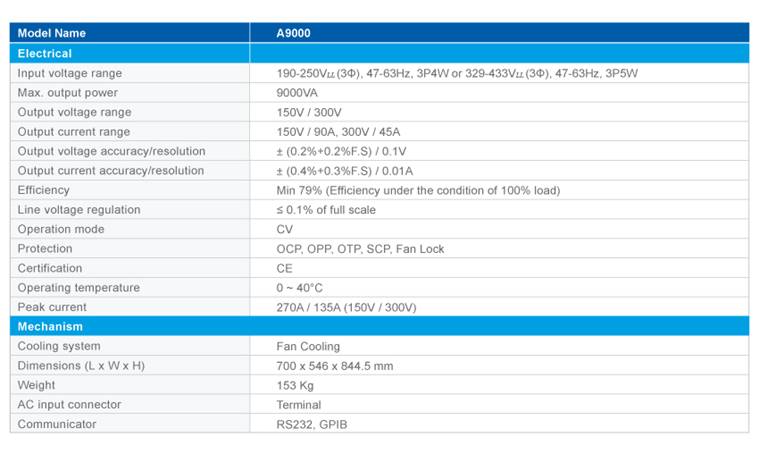

Specifications
